useful high tech floor grinding machine

High Tech Grinding-680 has XY-F65 industrial vacuum cleaner
attachment device, matching XY-F65 can achieve single and dust-free
grinding. Thus saving users'costs from both efficiency and labor.

  • Brand:

    Xingyi
  • Item NO.:

    HTG-680-4
  • Product Origin:

    China
  • Color:

    as your requirement
  • Shipping Port:

    Xiamen
  • Lead Time:

    7 days after receiving your payment
Product Detail

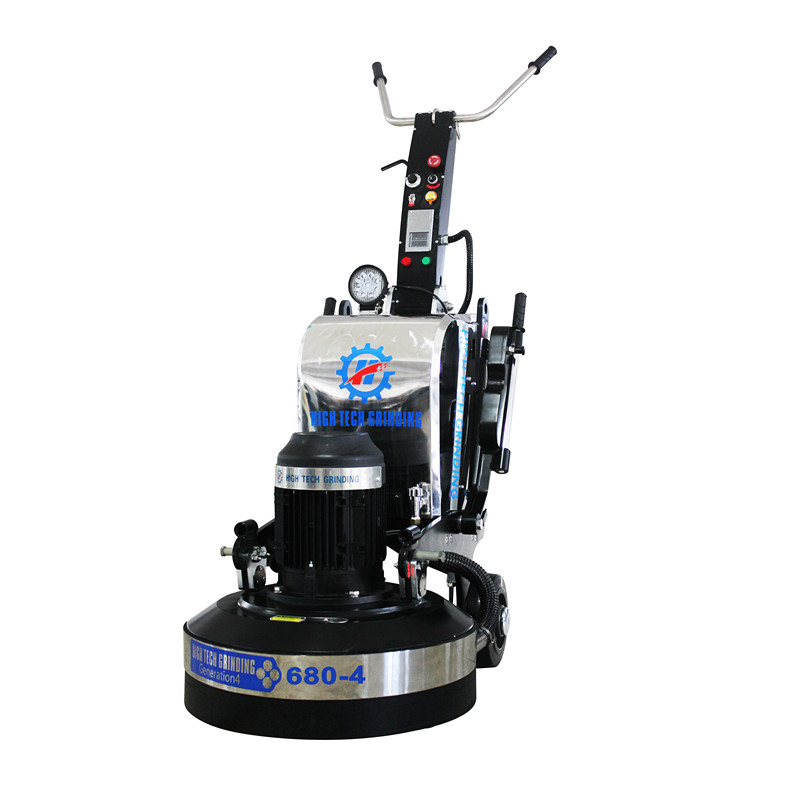

useful high tech floor grinding machine

 Motor:  Efficient7.5KW(10HP) motor
 Inverter:  Veichi7.5KW/Delta11KW
 Working width:  680mm
 Grinding disc:  230mm*4
 Motor rotating speed:  350rpm-1950rpm
 Machine net weight:  380kg(Including additional weight 20kg*2)
 Voltage:  220v/380v Three phase
 Grinding pressure:  173kg-190kg-236kg
 Water tank:  23L



High Tech Grinding surface treatment have achieved unique balance between devices power, design and tooling speed,efficiency.

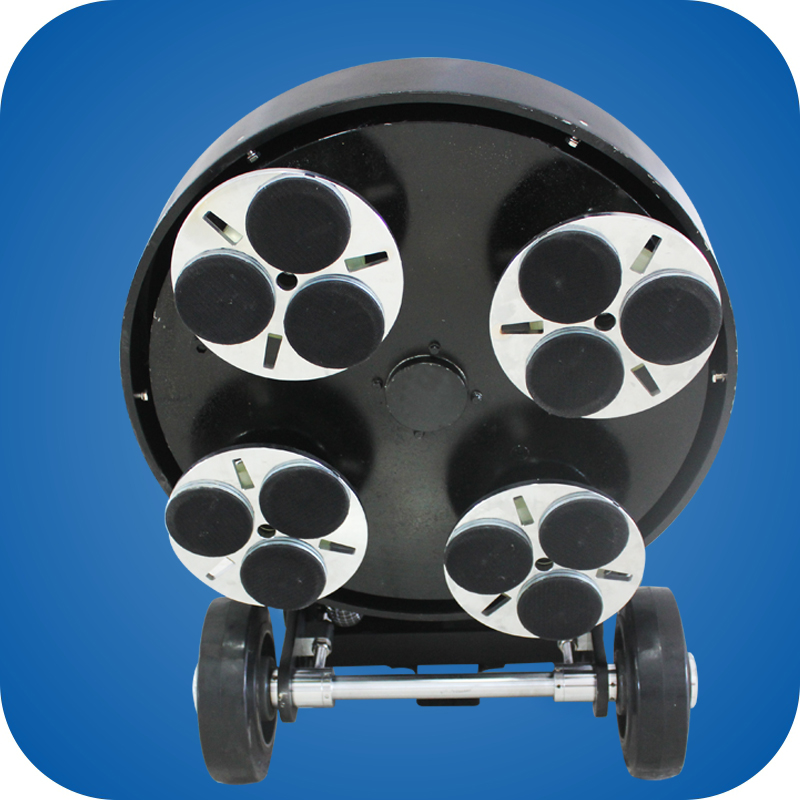

With patented four-disc planetary technology makes High Tech Grinding Machine standing out from other machines;it provides users with unprecedented control performance from the pre-treatment, grinding and polishing of concrete flooring to stone repairing and polishing.













1.Planetary counter rotation reduces High Tech Grinding  machine’s deviating force then it helps to lower grinding strength and easy to grip machine.

2.Four heads counter grinding work with the special design additional weight balanced High Tech Grinding 680-4  pressure and made the floor grinding flatness higher when comparing with similar machines.

3.Four heads counter grinding with 20HP strong driving force, which makes its working efficiency 30% higher than XY-688 machine.






Machines with water tank and vacuum port which enable dry and wet grinding.

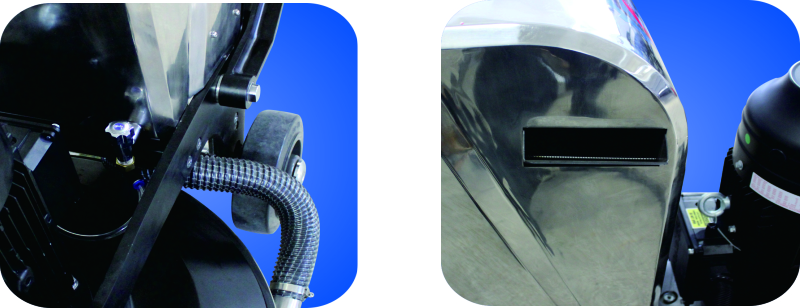

High Tech Grinding 680-4  with special and patented floating dust cover is a breakthrough of traditional abrasive dust cover.

Floating dust cover design achieved adjusting the height of the dust cover automatically following the consumption of abrasives and the ups and downs of the ground.  When replacing the abrasives, the dust cover will not fall off the machine, which solved the traditional grinding problem of re-installing the dust cover then to improve the efficiency fromdetails.






Three grades disc pressure adjustment achieved to provide users with unprecedented control performance from the pre-treatment,

grinding and polishing of concrete flooring to stone repairing and polishing.

Multi-functional additional weight design achieves replacing the 380kg grinder easily by single person.
