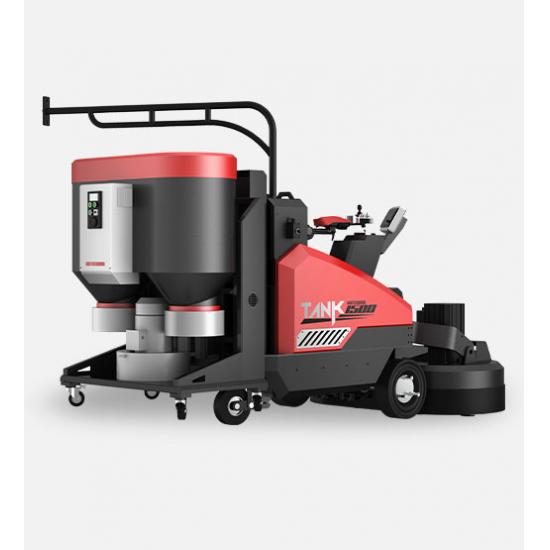

Tank1500 large areas terrazzo floor grinder

Tank1500 is a very suitable for industrial applications, low-maintenance, smooth-running on-board grinding and polishing machine, gearbox, completely sealed and dustproof.

  • Brand:

    High Tech Grinding
  • Item NO.:

    Tank1500
  • Product Origin:

    Jinjiang
  • Color:

    Red and black
  • Shipping Port:

    Xiamen
  • Lead Time:

    7-20 Days
Product Detail

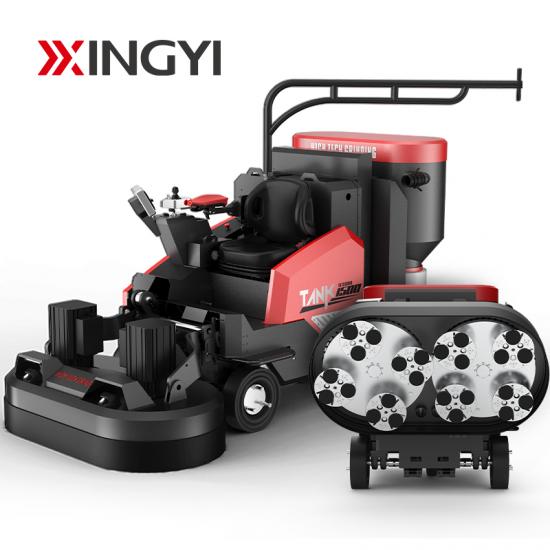

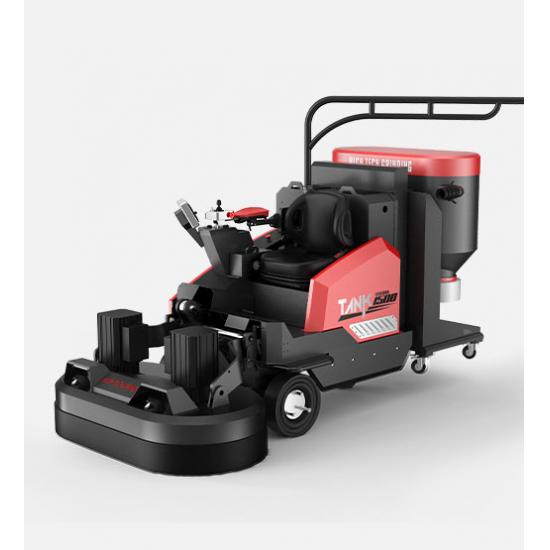

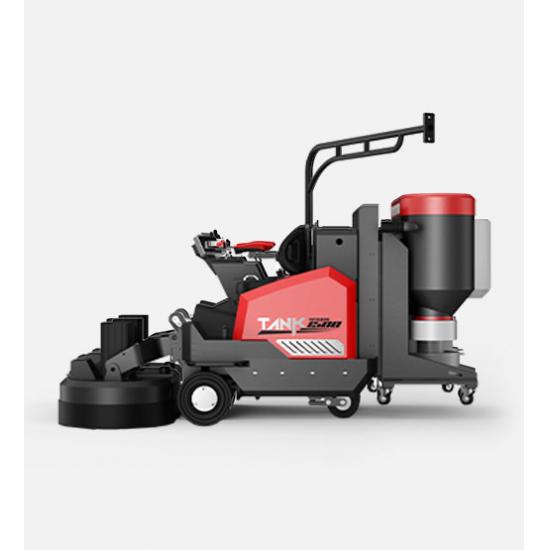

Tank1500 large areas concrete floor grinder

TANK 1500

Autopilot Grinding Machine

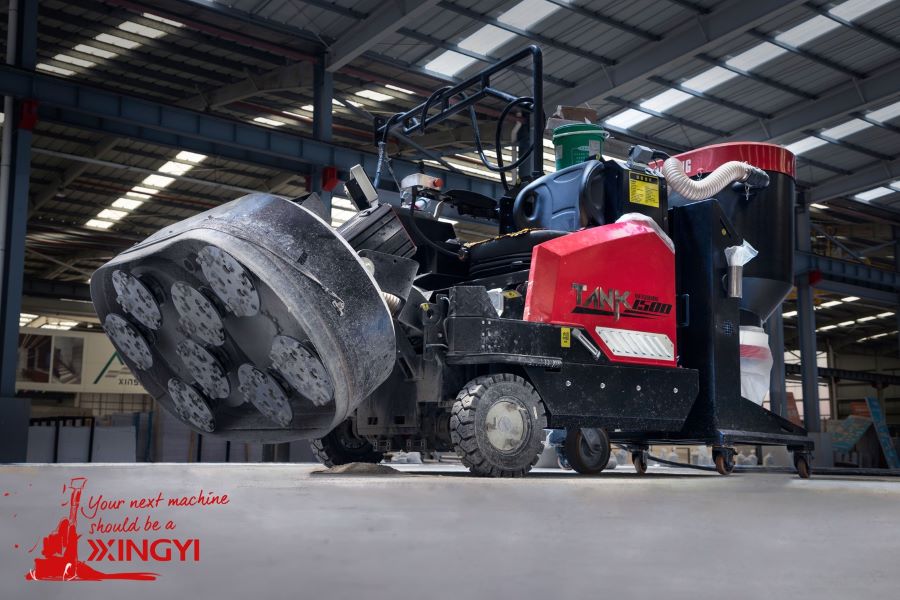

A ride-on concrete grinder for large areas

Tank-1500 floor grinding machine embarksa new era of the working way for floor grinding and polishing jobs. Thegrinder is grinding head consists of two modified HTG-800 heads, the grindingwidth is 1550mm and the motors are 18.5kW each that is incredibly effective andgrinds large areas in a short time, which means huge time-savings for theclient.

Now Tank-1500 grinder is serving inSouth Korea, Vietnam, Indonesia, Turkey, Qatar, Switzerland, USA, Canada, andmany areas of China. It helps our clients to do many famous jobs includes CALT,Canton Tower,Olympicvenues.

Tank1500 has concluded four coretechnologies and ten advanced features in one.

● Four coretechnologies

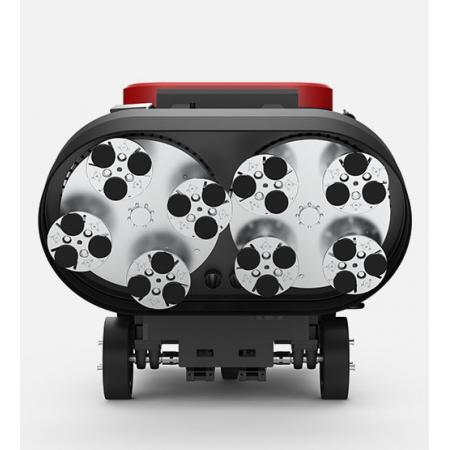

1.Largecrossing between disks

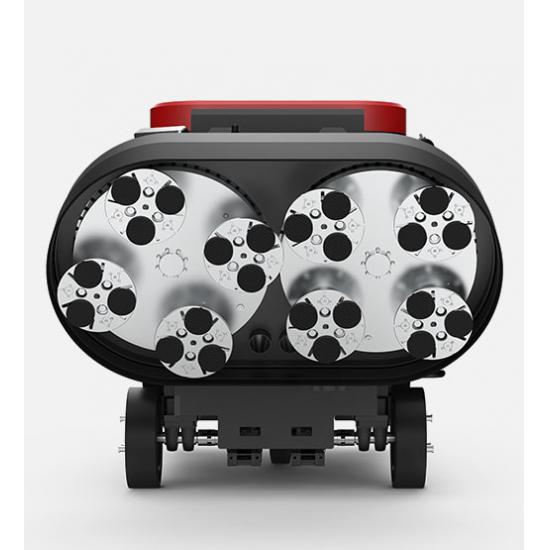

The machine is equipped with two bigplanetary gearboxes, so it has all the advantages of traditional planetarygrinders, and the crossing between the two gearboxes up to 86mm, which will notleave a gap after working, and larger working width makes better flat floors.

2.3Dhovering technology

PID control from the hydraulic systemand pressure sensor, keeps the grinding pressures consistent. And because ofthe hydraulic lifting system, we can raise the grinding heads easily and changethe tools quickly.

3.NewGeneration HMI system

Equipped with the voice broadcastfunction, making it is more clearer and intuitive to know the fault and runninginformation.

4.Automaticdust collection system

Equipped with a detachable automaticdust-cleaning vacuum cleaner, making the construction site is closer todust-free.

●   Ten advanced features

1.Flexibleturning system (Turning compensation)

It is more flexible and convenient whenturning or rectifying directions with the angle turning compensation function.

2.Separatecontroller

The separate remote controller allows usto walk around to check the floors close to obstacles or moving things.

3.Videomonitor

Equipped with front and rear cameras,floor conditions can be observed in real-time without stopping the machine.

4.Rechargeablebattery

The battery can help to transport easilyduring the power-off state, the machine can walk Max. 4 hours by itself.

5.Detachabledesign

Fast decomposition technology of thegrinding head/vacuum cleaner, it is easy for transportation.

6.Magnetoelectricmotor

Double 18.5kw permanent magnet motors,which can improve the working efficiency greatly.

7.Workingon slopes

With the powerful driven system, themachines’ walking speed can be 0~30m/min. Besides, it can work on slopes withMax. 23 degree.

8.Certainspeed cruise

The response time of the driven systemcan be less to 0.001 seconds, we can adjust the walking speed timely, so thesame speed makes uniform polishing effects.

9.Supergrinding pressure

The grinding pressure is up to 980 kg,which is special for uneven floors and big projects. This pressure is largerthan 99% of grinders in the market.

10.Water/mistsprayer

The water tank is 20 liters, we canadopt the wet working method, achieving the effects of reducing temperature anddust.


If you wantan effective concrete grinder that strips large areas in a short time, thatalso can work in small areas, provides a professional impression and which youcan learn to operate quickly, then the Tank1500 is the right grinder for you


Technical Parameters


Product Name tank1500
Length 2920mm
Width 1600mm
Height 1580mm
Weight 2100mm
Motor Power 18.5kw*2
Voltage 380V
Frequency 50-60HZ
Grinding pressure 980kg
Rotating speed 450-1500rpm
Grinding discs 278*8mm
Grinding width 1550mm
Water tank 25L
Water spray system Yes
Vacuum cleaner power 7.5kw
Max theoretical airflow 1000 m³/hour
Walking motor 2kw*2个
